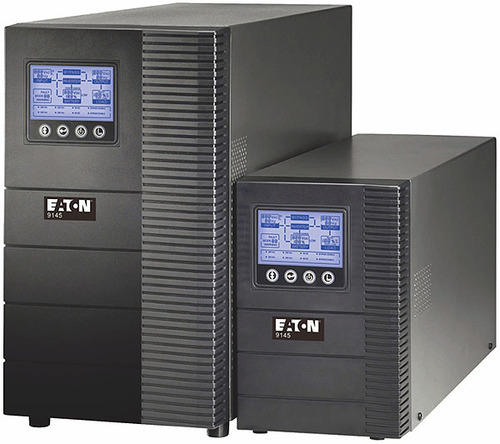

Eaton9145 series ups.(1 to-20 kva)
We are one of the leading trader and supplier of Eaton 9145 UPS. This flawlessly designed system excellently protects applications from downtime, data loss and corruption. This system protects applications from downtime, data loss and corruption. Our offered system is procured from most authentic vendors in the market and is designed using basic components in compliance with set industry standards. Clients can avail this system form us at affordable rate.
Specifications:
| Product Snapshot |
| Power Rating |
1 kVA - 3 kVA at 0.8pf
6 kVA - 20 kVA at 0.9pf |
| Voltage |
220V |
| Frequency |
50/60 Hz (auto-sensing) |
| Configuration |
Tower |
| Product Series |
Eaton |
| UPS Models |
| Part Number |
Power Rating |
Input Plug |
Output Receptacles |
| - |
(VA / Watts) |
- |
- |
| Eaton 9145 (Internal Battery) |
| 9145 1000 in |
1000 / 800 |
C14 |
(4) C13 |
| 9145 2000 in |
2000 / 1600 |
C20 |
(6) C13 |
| 9145 3000 in |
3000 / 2400 |
C20 |
(6) C13 |
| 9145 6K in |
6000 / 5400 |
Hardwired |
Hardwired |
| 9145 10K in |
10000 / 9000 |
Hardwired |
Hardwired |
Features:
- Robust design and on-line double conversion topology assures maximum reliability
- Wide input-voltage range appropriate for the harshest electrical environments
- Automatic bypass for fault-tolerance
- Cold start on battery power enables portability
- Adjustable battery quantity optimizes sizing
- Intuitive front-panel LCD user interface for consistent status indication
- Inbuilt RS-232, USB & Intelligent Slot communication ports
- Winpower software suite bundled
|
